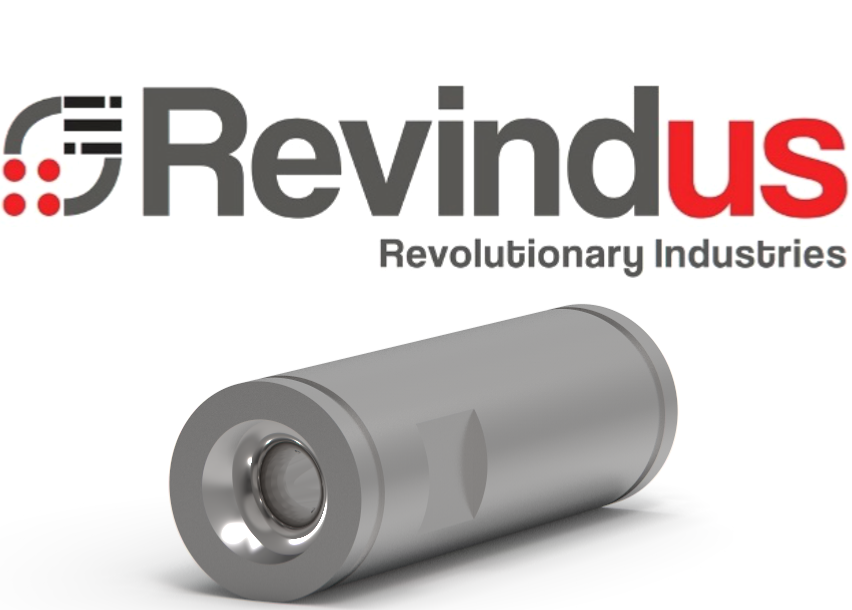

Sonic Nozzles are designed and manufactured to control the gas flow rate within precise limits.

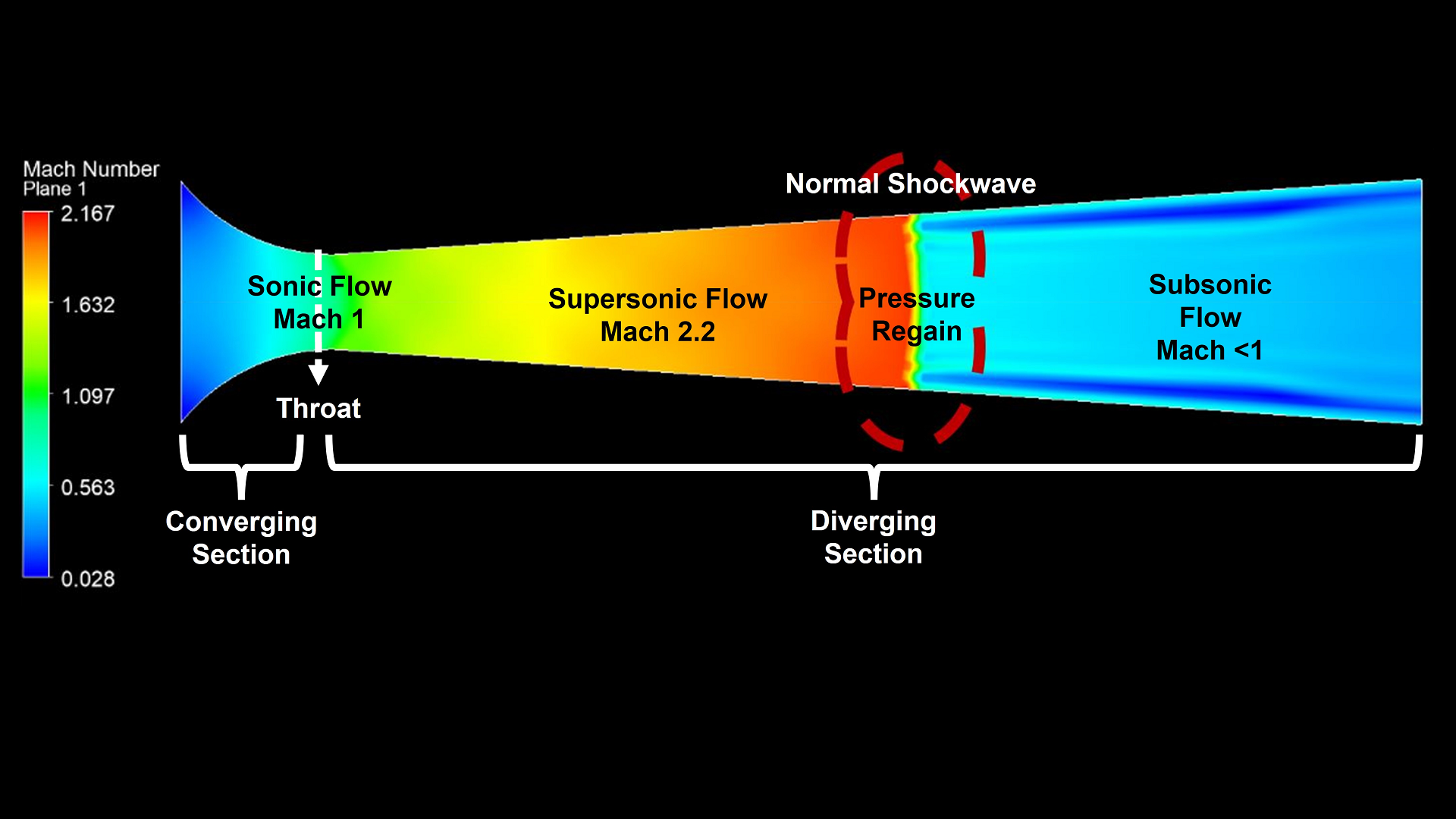

Simply, thanks to compressible flow dynamics and special geometry of the nozzle, the velocity of the gas reaches to speed of sound (Mach1) at the throttle. At this condition flow is “CHOKED” in the other terms limited. Therefore, no further flow rate is allowed to flow through.
Every application has its own requirement. The gas, pressure, flow rate and other conditions may vary. Therefore, Revindus designs the nozzles with help of their experience on compressible flow dynamics and powerful CFD package tool for each application. The unique design enables the nozzle to recover pressure effectively for use.

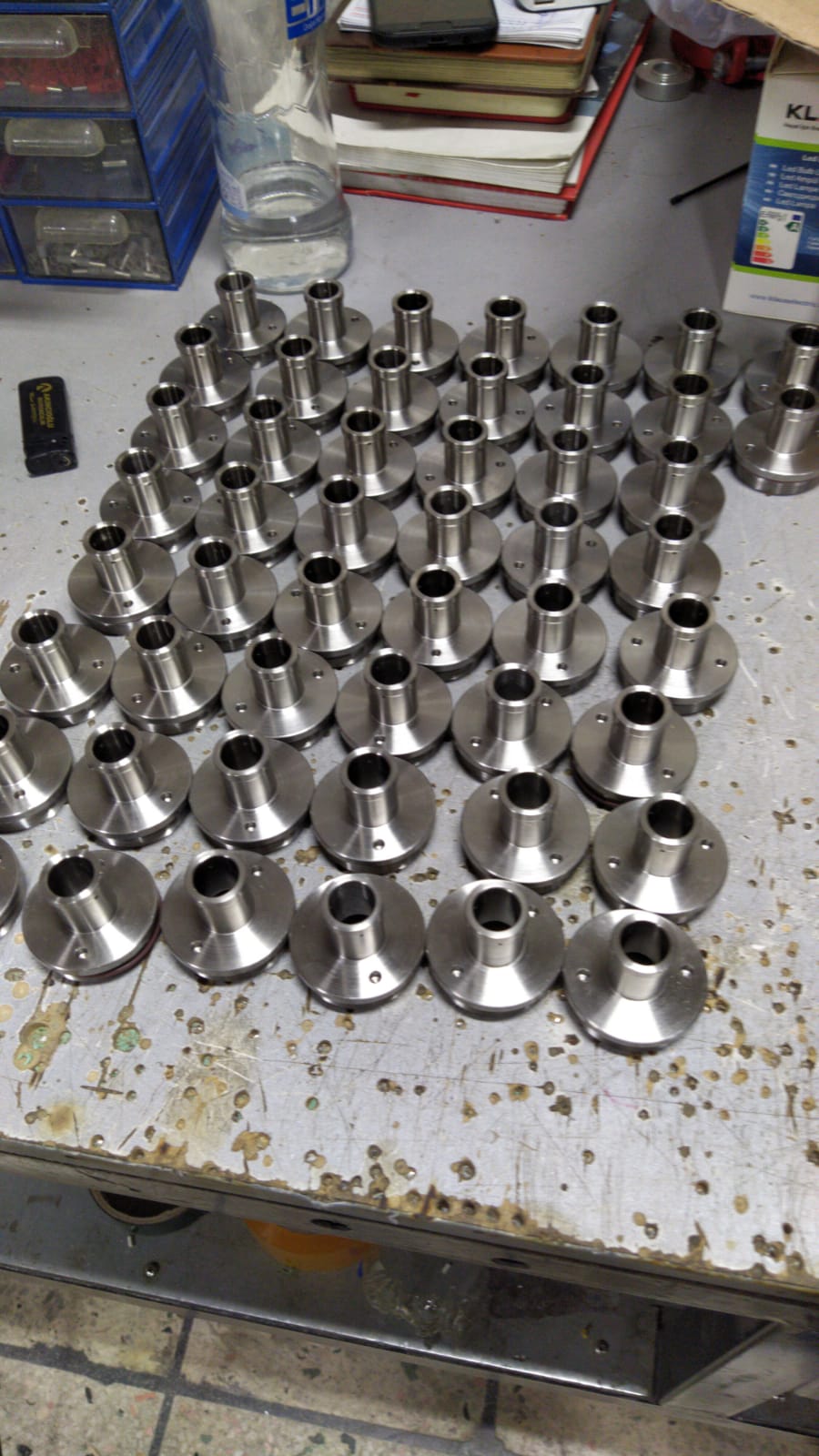

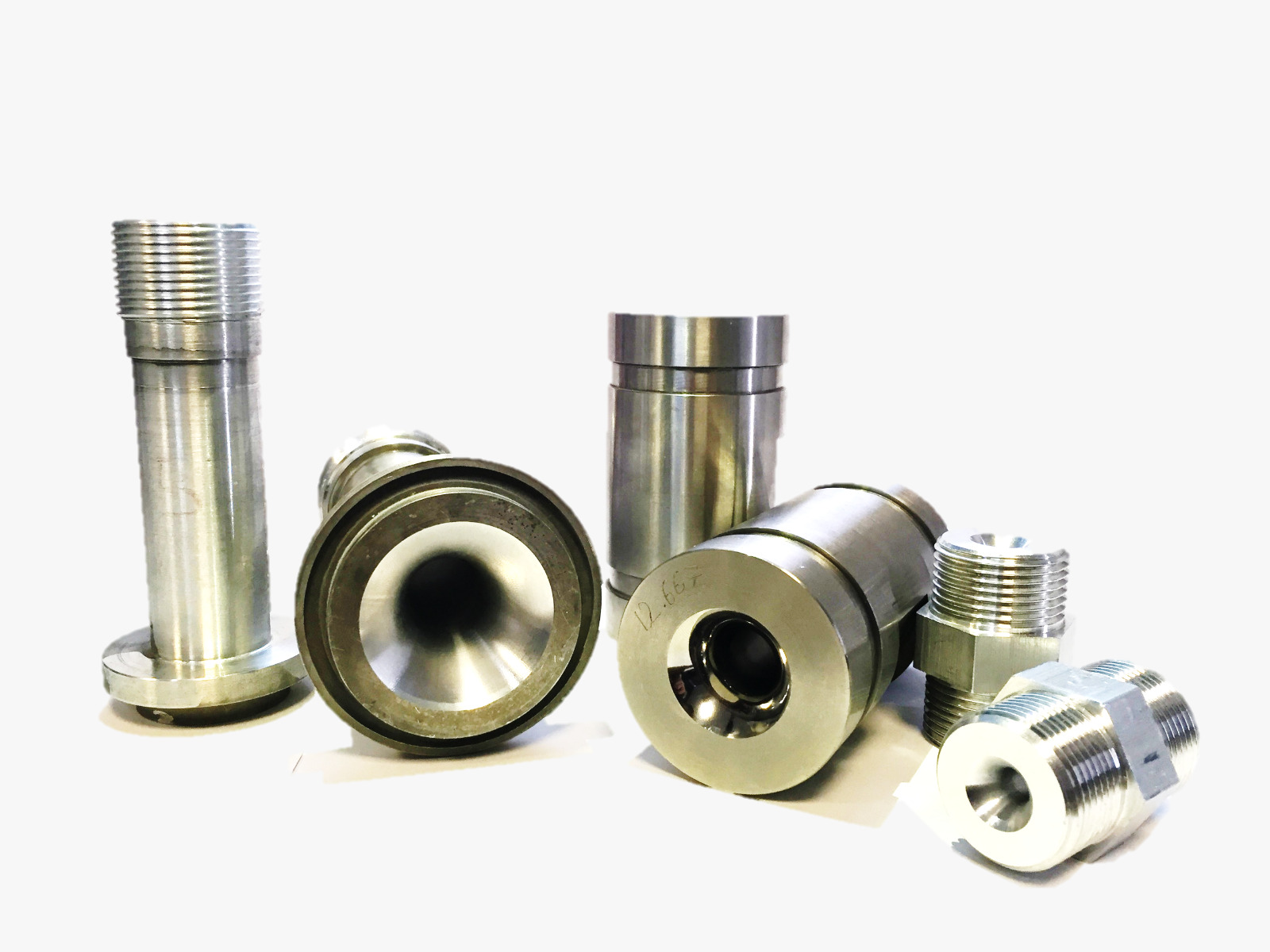

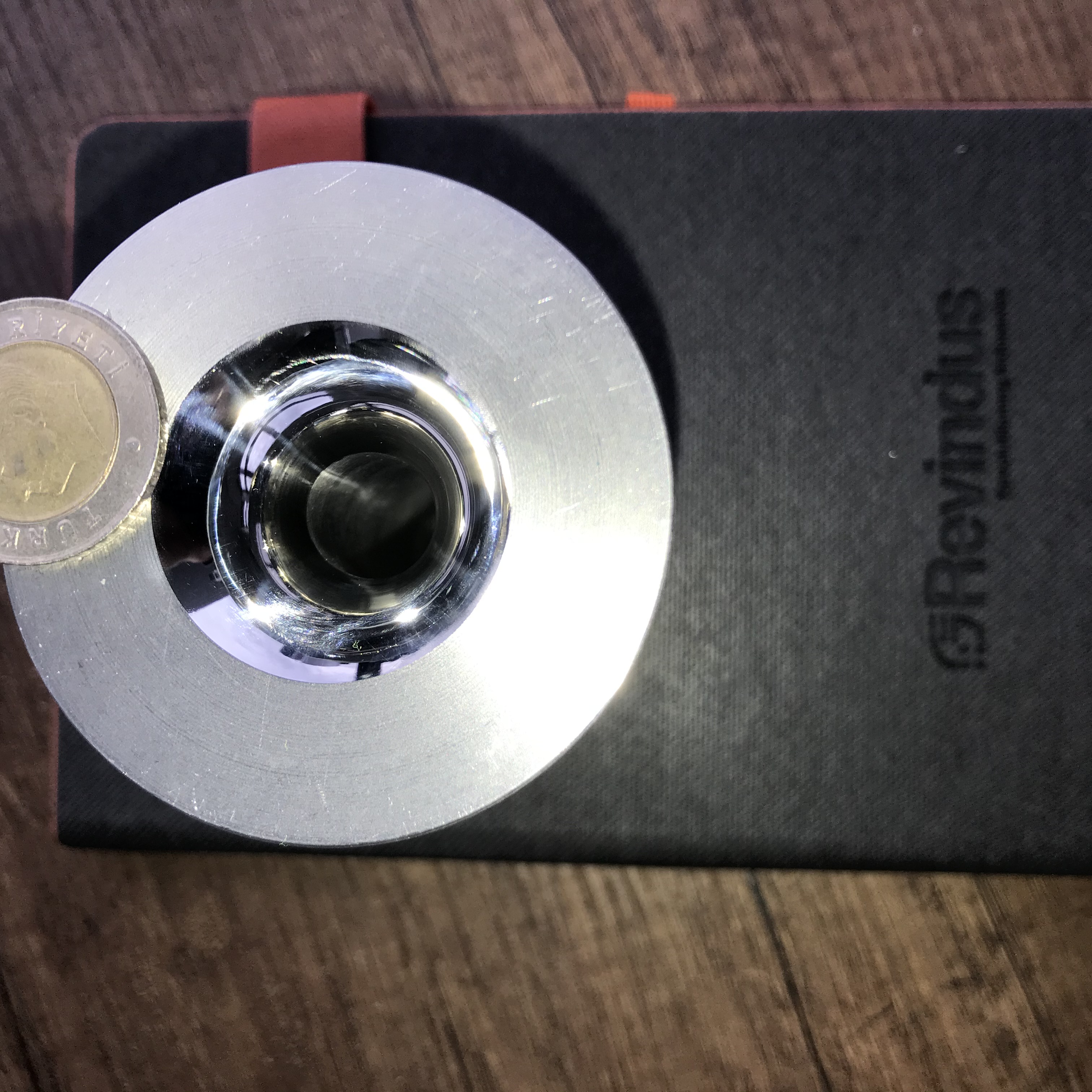

The flow rate is related to throat geometry and the surface. For each application, the surface quality and material might differ. Stainless steel and aluminum are the most popular sonic nozzle base material.
Compressed Air & Gas Flow Meter Calibration
Compressor,Dryer and Filter Performance Acceptance Test
Precise Flow Limiter for Branches Having Distribution Issues
Assures Safe Operation for Desiccant Dryer and Activated Carbon Tower
Intermittent Demand Solutions
Valve CV Tests
Calibration of Turbine Engine Component Gas Passages
